BRASS BALL VALVE

LSK-VL124 BRASS BALL VALVE (ZAWÓR) WITH UNION BUTTERFLY HANDLE					-249
LSK-VL124 BRASS BALL VALVE (ZAWÓR) WITH UNION BUTTERFLY HANDLE					-250
LSK-VL124 BRASS BALL VALVE (ZAWÓR) WITH UNION BUTTERFLY HANDLE					-251
LSK-VL124 BRASS BALL VALVE (ZAWÓR) WITH UNION BUTTERFLY HANDLE					-254

LSK-VL124 BRASS BALL VALVE (ZAWÓR) WITH UNION BUTTERFLY HANDLE

Product Description

◆  Specifications

●  male-male

●  full bore

●  with gland and packing nut

●  handle: butterfly

●  body material: CW617N brass

●  ball finish: chrome plated, polished

●  ball sealing: PTFE

●  stem sealing: PTFE

Product Details



◆  Operating parameters and scope of application

●  nominal pressure: 30 bar (PN30)

●  max. working temperature: 110°C

●  min. working temperature: -10°C

●  working media: water (water supply systems and central heating)


◆  Advantages

●  warranty: 5 years

●  full bore according to standard, valve bore without any constriction affecting the flow

●  the gland on the stem allows compensation of possible clearance by means of a simple wrench

●  solid metal handle

●  thick walls and solid workmanship - increased durability and strength

●  chrome plated and polished ball resistant to blocking

●  connection threads with a large number of thread turns provides a secure and tight connection

●  stable and safe seating of the stem due to assembly from the inside of the valve

●  quality control carried out strictly according to applicable European standards

●  100% of the valves produced are tested for leakage

●  valves are sandblasted and then nickel plated on the outer surfaces

●  NICKEL FREE - The surface of the valve in contact with water is not nickle-plated

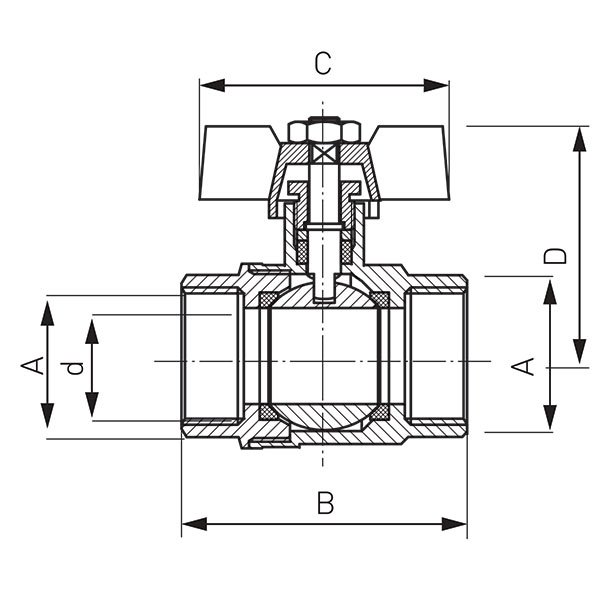

SizeDNAd [mm]B [mm]C [mm]D [mm]Kvs [m3/h]Individ. PackCollect. Pack
1/2"15G1/215505340915180
3/4"20G3/41955.653431512120
1"25G12566.66547251090
1 1/4"32G1 1/431767562
636
