◆ Specifications
● BRASS INSERT
● CW617N Brass body
● AISI 302 Stainless steel spring
● Connection : BSP/NPT
● Installations : Horizontal or vertical position
◆ Operating parameters and scope of application
● nominal pressure: 10 bar (PN20)
● max. working temperature: 110°C
● min. working temperature: -10°C
● Applications : Water supply & water distribution network, heating
◆ Advantages
● warranty: 5 years
● thick walls and solid workmanship - increased durability and strength
● connection threads with a large number of thread turns provides a secure and tight connection
● chrome plated and polished body resistant to blocking
● stable and safe seating of the stem due to assembly from the inside of the valve
● quality control carried out strictly according to applicable European standards
● 100% of the valves produced are tested for leakage
● valves are sandblasted and then polish on the outer surfaces

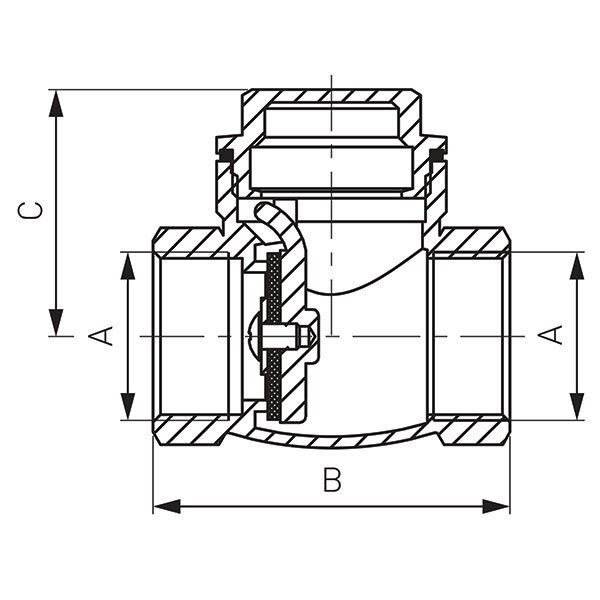

Size | DN | A | B [mm] | C [mm] | Individ. Pack | Collect. Pack |
1/2" | 15 | G1/2 | 47 | 35.7 | 12 | 270 |
3/4" | 20 | G3/4 | 56 | 38.7 | 6 | 180 |
1" | 25 | G1 | 64 | 44 | 4 | 120 |
1 1/4" | 32 | G1 1/4 | 75 | 52 | 3 | 72 |
1 1/2" | 40 | G1 1/2 | 81 | 59 | 2 | 45 |
2" | 50 | G2 | 93 | 66 | 1 | 24 |
